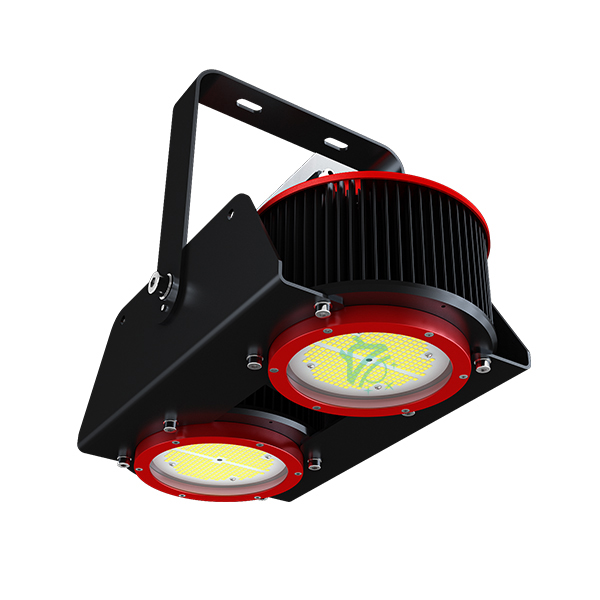

1.INTENDED USE
This LED Highbay is the affordable LED solution for users who prefer a luminaire with the look and feel of a round form factor. Gymnasiums, warehouses, packaging facilities and other industrial applications all benefit from Harley's highly efficient design that saves over traditional sources.
2.CONSTRUCTION
It features an aluminum heat sink to maximize heat dissipation and extend the life of the luminaire by maximizing contact with the LEDS. A glass optical enclosure protects the LEDS from dust and other air contaminants.
3.OPTICS
Reflector option provides maximum versatility and uniformity. Glass lenses offer enhanced aesthetics, and minimize glare at lower mounting heights.
4.ELECTRICAL
Input voltages include 120-277, 347-480 without the use of a step down transformer. 0-10V dimming standard for a dimming range of 100% to 0%.
5.INSTALLATION
Mounting options include steel hook & cord to accommodate stem or cast hook options.
6.LISTINGS
UL1598A and ETL listed. Suitable for use in ambient temperature from -40°C up to 70°C.
For high mounting height that require high,efficiencie, horizontal and vertical illumination. Optimum performance for high ambient temperatures and dirty environments. Ideal for heavy manufacturing areas, steel plant, offshore platform, etc.

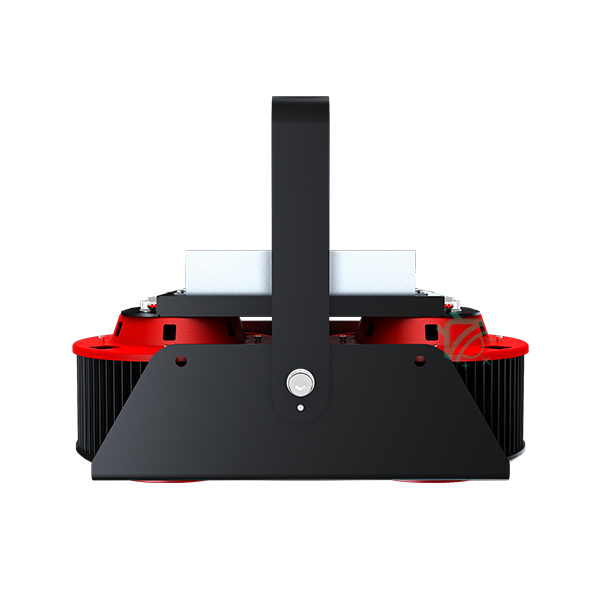

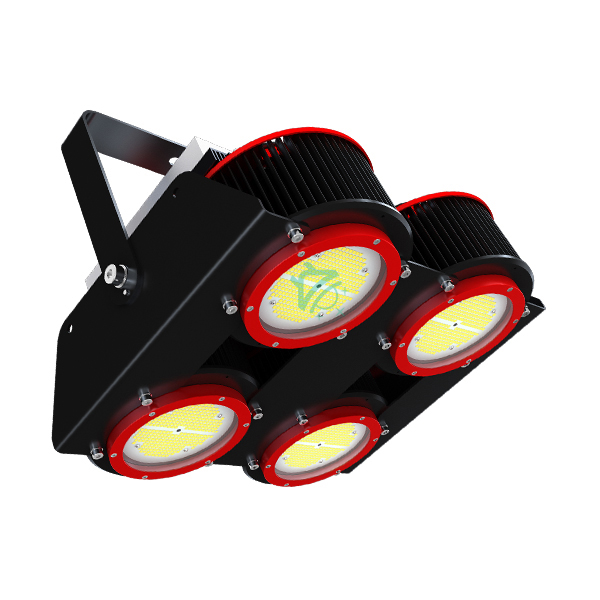

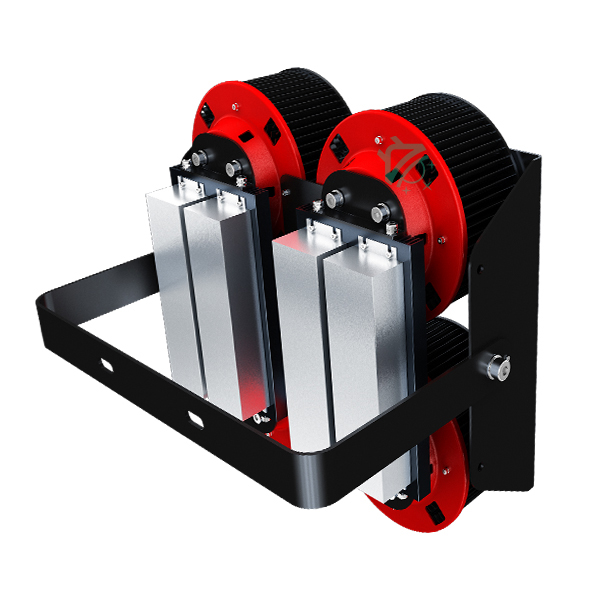

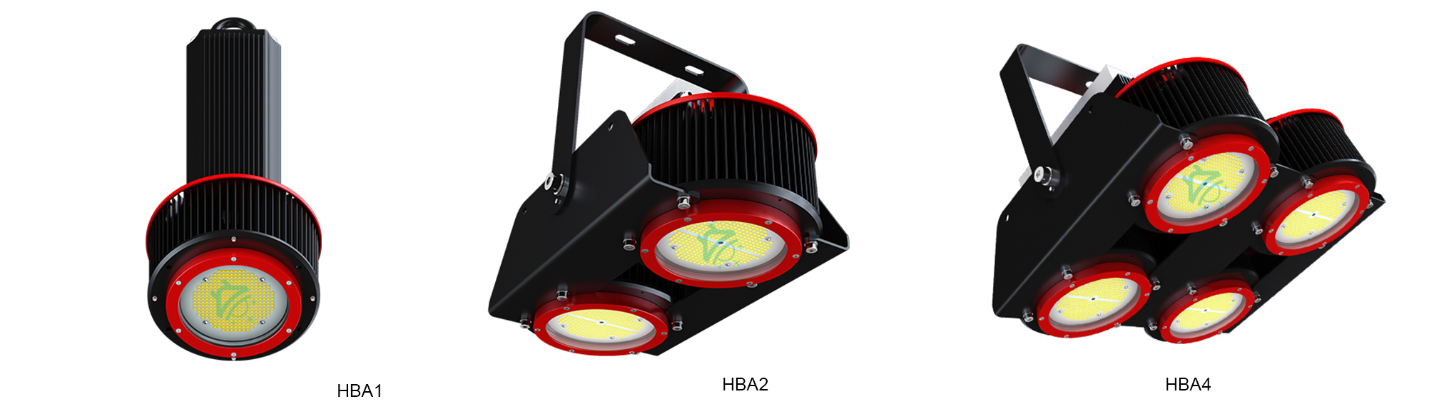

HBA Series
• HBA1:10W-150W
• HBA2:150W-300W
• HBA4:300W-600W
Marine Marking
UL1598, UL1598A
Other Rating
IP 66

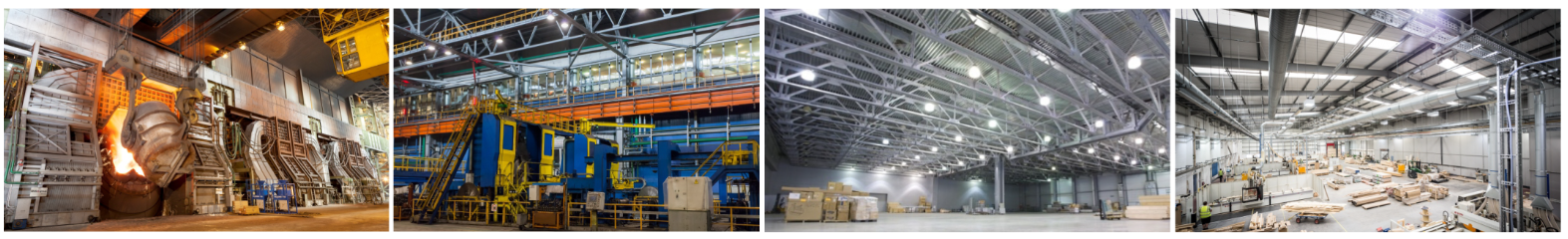

>APPLICATIONS
Chemical industry
• All types of paint facilities
• Chemical production and storage
Metal treatment
• Steel and aluminum factories
• Pumping stations in any environment
• Metal smelting, foundry and fabrication
Ocean, marine and aerospace field
• Ocean platform operation facilities and structure
• Aerospace clean room and production
• Ocean vessel operations
Oil and Gas industry
• All petroleum production and refining
• Petroleum loading and transportation
• Petroleum storage and retail
• LNG industry
• All mining operations and service
Food and alcohol industry
• Flour and fine particle production and storage
• Food and distilling production
• Alcohol industry
Other high humidity, high dust, high temperature, vapor locations

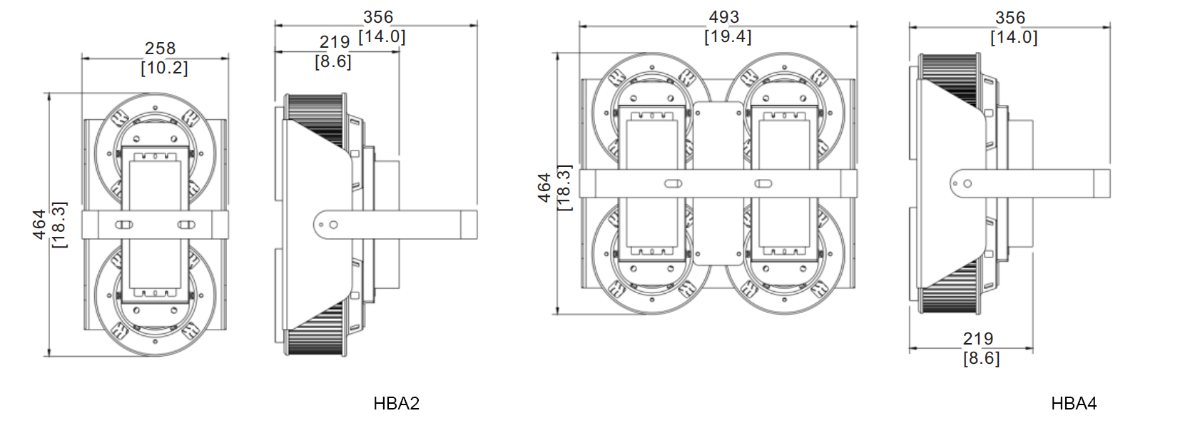

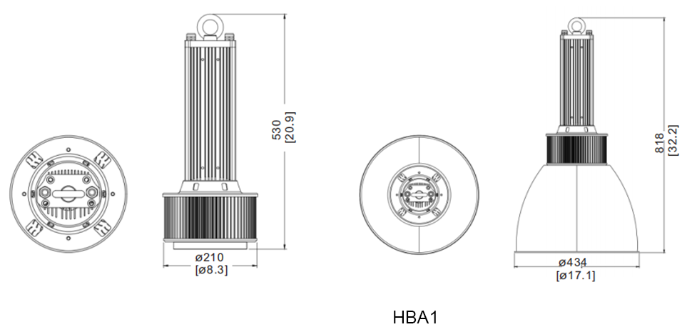

>DIMENSION
