Technical Specs
RatedWattage: 20W/40W/60W/80W/100W/120W/150W/200W/250W/300W/350W/400W
Rated Voltage: AC100-277V/200-480V or DC12-48V
Luminaire Efficacy: 140lm/W
Lumen Output: 2,800lm-56,000lm
CCT: 2200-7000K Optional
CRI: Ra80
Beam Angle: 15°/25°/60°
Ingress Protection: IP66
Warranty: 5 Years
Applications: Oil and gas refinery, drilling rig, petrochemical facility, food and beverage facility, hazardous location, etc.
Certification
Pacific Series

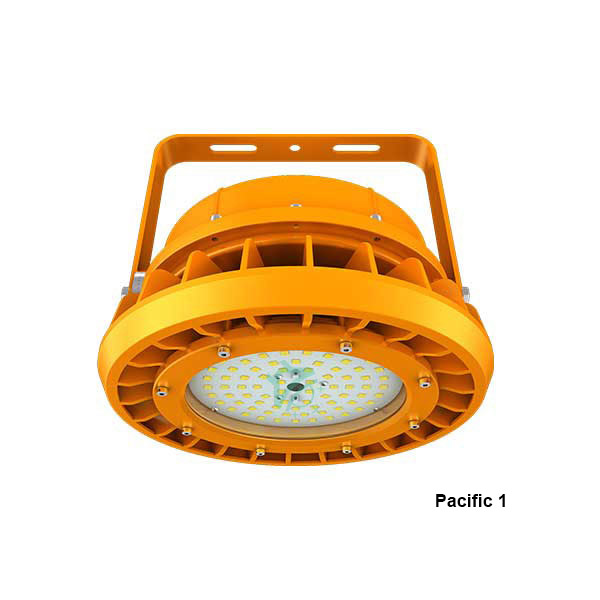

• Pacific1:60W,80W

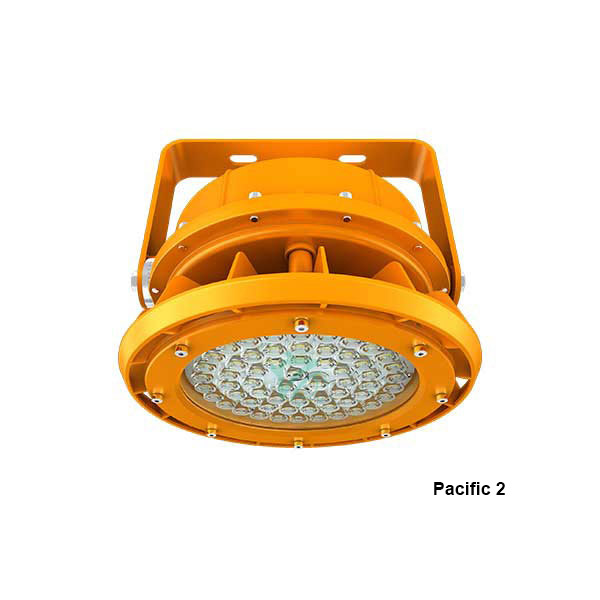

• Pacific2:20W,40W

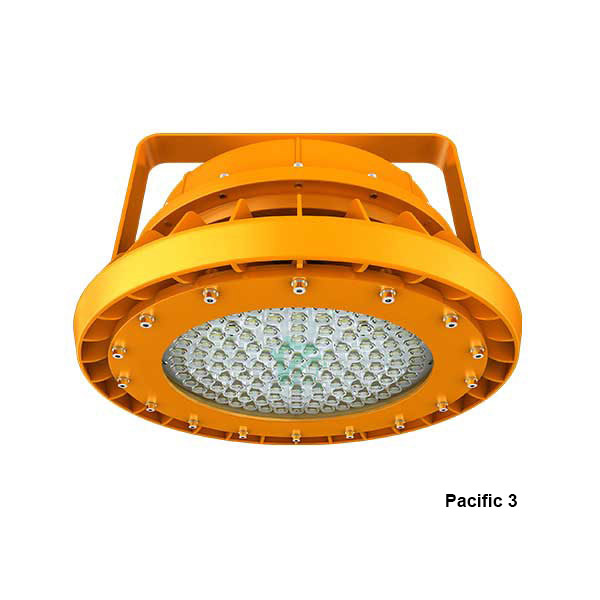

• Pacific3:100W,120W,150W,200W

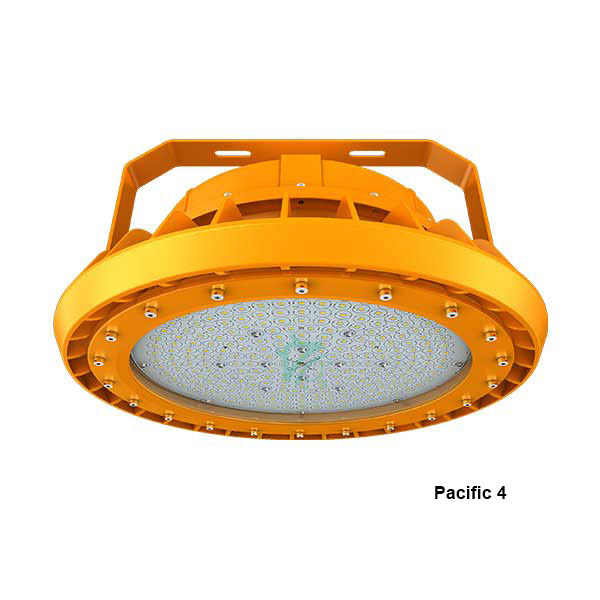

• Pacific4:250W,300W,350W,400W
>EXPLOSION PROTECTION >MATERIALS
Marking ATEX
II2 G Ex mb eb IIC T4 Gb
II2 D Ex tb IIIC T135C Db IP66
II3 G Ex ec IIC T3 Gc
Marking IECEx
Ex mb eb IIC T4 Gb
Ex tb IIIC T135°C Db IP66
Ex ec IIC T3 Gc
Ex tb IIIC T85°C Db IP66
Marking UL844(North American)
Class I, Division 2, Groups A, B, C, D
Class II, Division 1, Groups E, F, G
Class II, Division 2, Groups F, G
Class III
Marine Marking
UL1598, UL1598A
ABS
Other Rating
IP 66

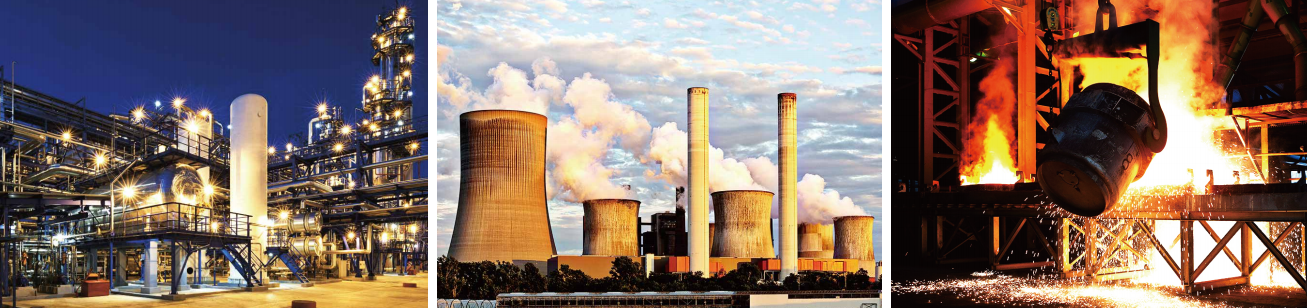

>APPLICATIONS
Oil and Gas industry
• All petroleum production and refining
• Petroleum loading and transportation
• Petroleum storage and retail
• LNG industry
• All mining operations and service
Chemical industry
• All types of paint facilities
• Chemical production and storage
Ocean, marine and aerospace field
• Ocean platform operation facilities and structure
• Aerospace clean room and production
• Ocean vessel operations
Metal treatment
• Steel and aluminum factories
• Pumping stations in any environment
• Metal smelting, foundry and fabrication
Food and alcohol industry
• Flour and fine particle production and storage
• Food and distilling production
• Alcohol industry
Other high humidity, high dust, high temperature, vapor locations

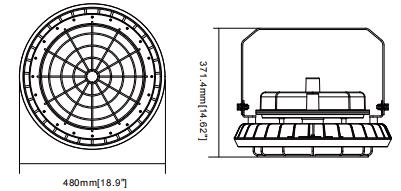

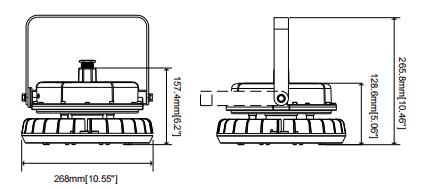

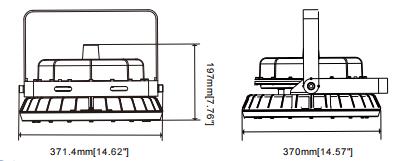

>DIMENSION
