Technical Specs
Rated Wattage: 20W/40W/60W/80W
Rated Voltage: AC100-277V/200-480V or DC12-48V
Efficacy: 140lm/W
Lumen Output: 2,800lm-11,200lm
CCT: 2200-7000K Optional
CRI: Ra80
Beam Angle: 120°
Ingress Protection: IP66
Warranty: 5 Years

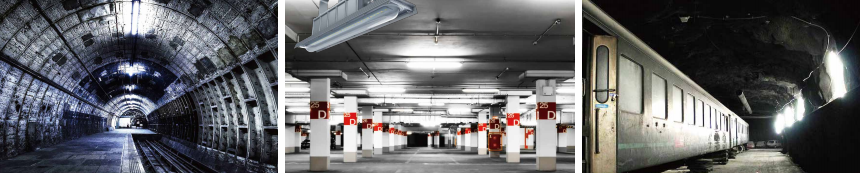

Applications: Oil and gas refinery, drilling rig, petrochemical facility, food and beverage facility, hazardous location, etc.
Certification
This explosion-proof luminaire offers the widest range of ATEX and IECEx certified hazardous area lighting for safe use in potentially explosive atmospheres worldwide. A flameproof and impact-resistant high bay for lighting outdoor pathways, walkways and corridors in hazardous areas. It provides safe and reliable lighting in Zones 2, 21 and 22 hazardous areas. Constructed of a durable, Die-casting aluminum housing. IP66 rating provide further protection from impact, vibration, and the elements. These light fixtures are designed for targeted indoor and outdoor lighting where corrosive, wet, dusty, hot and/or cold conditions exist. Common installations include oil and gas production facilities, chemical plants, and heavy industrial applications.
Rocky Series

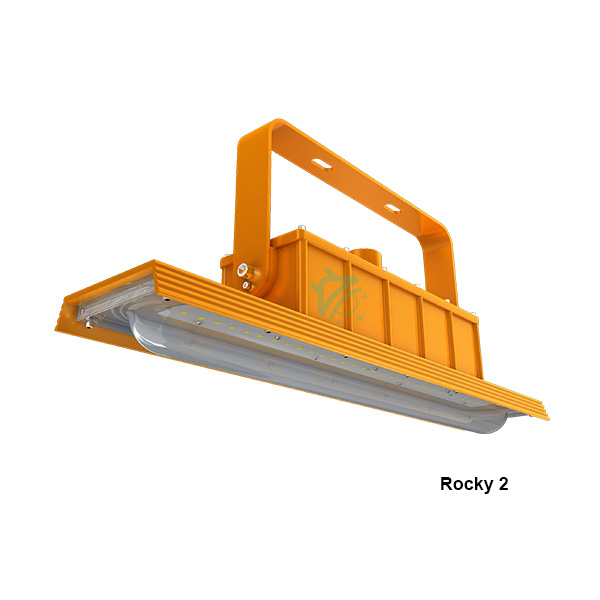

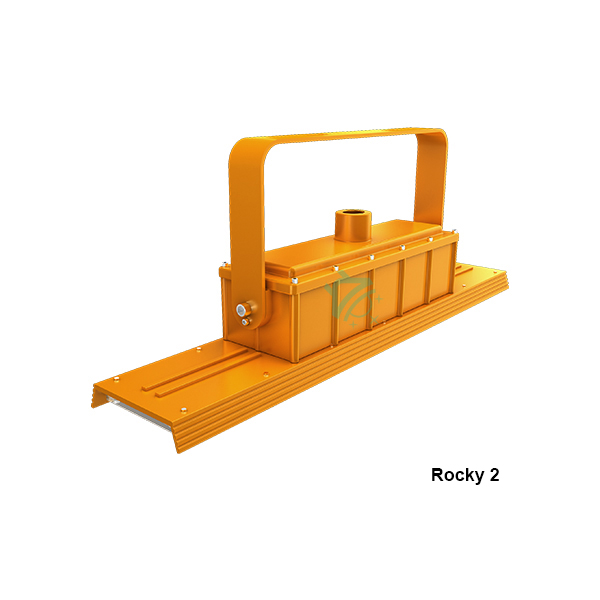

• Rocky2:20W,40W

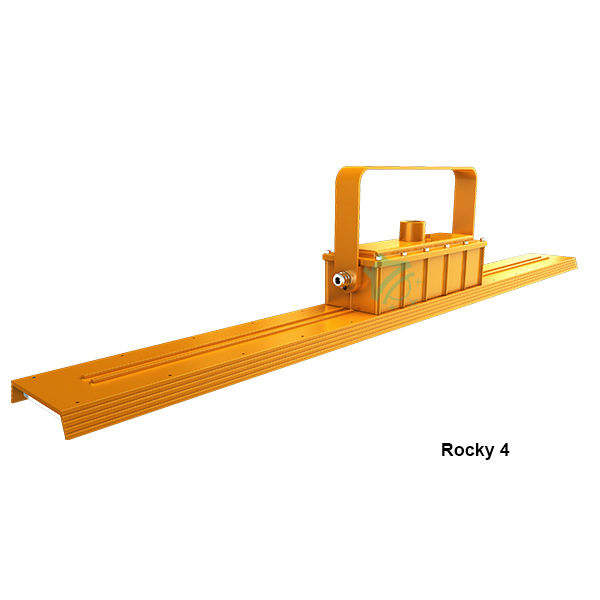

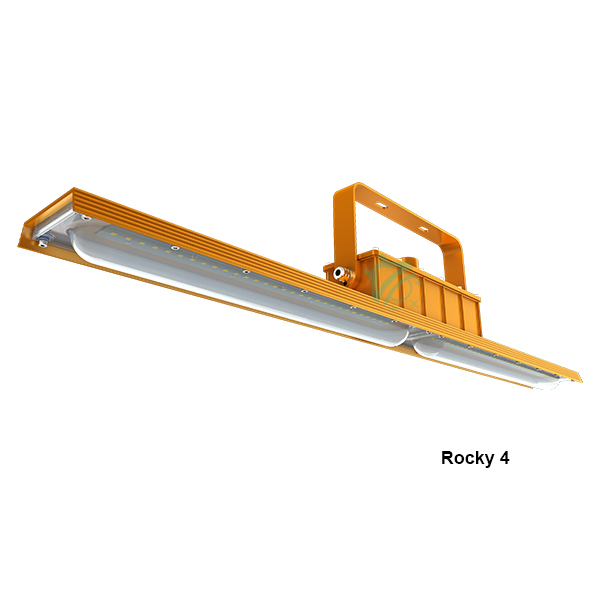

• Rocky4:40W,60W,80W
EXPLOSION PROTECTION
Marking ATEX
Il3 G Ex ec IIC T5/T6 Gc
Il2 D Ex tb IIIC T80/100°C Db IP66
Marking IECEx
Ex ec IIC T5/T6 Gc
Ex tb IIIC T80/100°C Db IP66
Marking UL844 (North American)
Class I, Div. 2, GroupsA, B, C, D
Class II, Div. 1, Groups E, F, G
Class II, Div. 2, Groups G
Class III
Marking Marine
UL1598, UL1598A
ABS
Other Rating
IP 66
Oil and Gas industry
•All petroleum production and refining
•Petroleum loading and transportation
•Petroleum storage and retail
•LNG industry
•All mining operations and service
Chemical industry
•All types of paint facilities
•Chemical production and storage
Ocean, marine and aerospace field
•Ocean platform operation facilities and structure
•Aerospace clean room and production
•Ocean vessel operations
•Steel and aluminum factories
Metal treatment
•Pumping stations in any environment
•Metal smelting, foundry and fabrication
Food and alcohol industry
•Flour and fine particle production and storage
•Food and distilling production
•Alcohol industry
Other high humidity, high dust, high temperature, vapor locations
MATERIALS
•Housing: Copper-free aluminum
•Lens: PC
•Hardware: Stainless steel
•Mounting Bracket: Stainless steel
DIMENSION

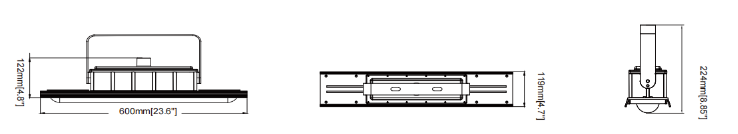

Rocky2

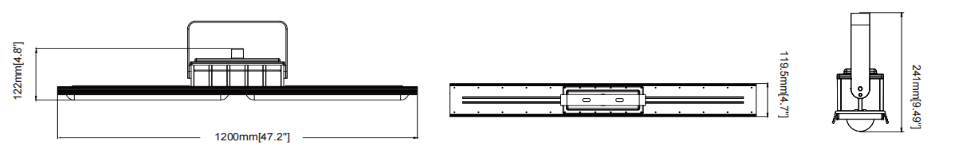

Rocky4
