•Working Temperature: -40°C ~ +50°C.
•High quality SMT LED and Meanwell Driver.
•Heavy-duty and high impact resistance.
•Replaceable LED board and drivers.
•Integrated junction box for driver .
•Dimmable and battery back up function available.
•Marine rating powder coated finish treatment.
•Up to 5 years warranty .
•Various installation ways for different applications.
•Glass lens or polycarbonate lens to make different beam angles.

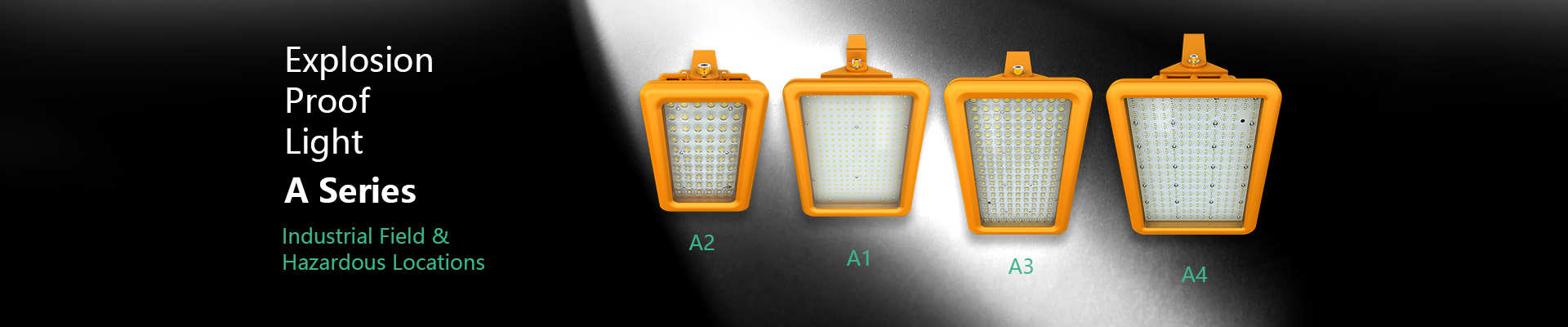

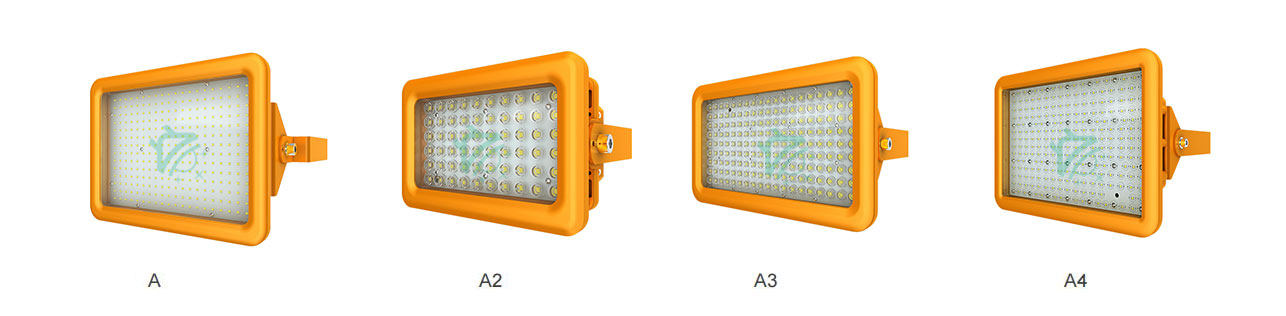

A Series
• A1:80W,100W
• A2:20W,40W,60W
• A3:150W,180W,200W
• A4:150W,180W,200W,250W,300W,400W
>EXPLOSION PROTECTION
Marking ATEX
II 3 G Ex ec IIC T3 Gc
Il 2 D Ex tb IIIC T103°C Db
II 2 G Ex mb eb IIC T3 Gb
II 2 D Ex tb IIC T125°C Db
Marking IECEx
Ex ec IIC T3C Gc
Ex tb IIIC T103°C Db
Ex mb eb IIC T3C Gb
Ex tb IIC T125°C Db
Marking UL844 (North American)
Class I, Division 2, Groups A, B, C, D
Class II, Division 1, Groups E, F, G
Class II, Division 2, Groups F, G
Class III
Marine Marking
UL1598, UL1598A
ABS
Other Rating
IP 66
>APPLICATIONS
Oil and Gas industry
• All petroleum production and refining
• Petroleum loading and transportation
• Petroleum storage and retail
• LNG industry
• All mining operations and service
Chemical industry
• All types of paint facilities
• Chemical production and storage
Ocean, marine and aerospace field
• Ocean platform operation facilities and structure
• Aerospace clean room and production
• Ocean vessel operations
Metal treatment
• Steel and aluminum factories
• Pumping stations in any environment
• Metal smelting, foundry and fabrication
Food and alcohol industry
• Flour and fine particle production and storage
• Food and distilling production
• Alcohol industry
Other high humidity, high dust, high temperature, vapor locations
MATERIALS
• Housing: Copper-free aluminum
• Lens: Tempered glass
• Hardware: Stainless steel
• Mounting Bracket: Stainless steel
