Technical Specs
Rated Wattage: 20W/60W/80W/100W/150W/200W/250W/280W
Rated Voltage: AC100-277V/200-480V or DC12-36V
Efficacy: 140lm/W
Lumen Output: 2,800lm-16,800lm
CCT: 2200-7000K Optional
CRI: Ra80
Beam Angle: 120°
Ingress Protection: IP66
Warranty: 5 Years
Applications: Oil and gas refinery, drilling rig, petrochemical facility, food and beverage facility, hazardous location, etc.
Certification
This explosion-proof luminaire offers the widest range of ATEX and IECEx certified hazardous area lighting for safe use in potentially explosive atmospheres worldwide. A flameproof and impact-resistant high bay for lighting outdoor pathways, walkways and corridors in hazardous areas. It provides safe and reliable lighting in Zones 1, 2, 21 and 22 hazardous areas. Constructed of a durable, copper free aluminum housing. IP66 rating provide further protection from impact, vibration, and the elements. These light fixtures are designed for targeted indoor and outdoor lighting where corrosive, wet, dusty, hot and/or cold conditions exist. Common installations include oil and gas production facilities, chemical plants, and heavy industrial applications.
Nile Series

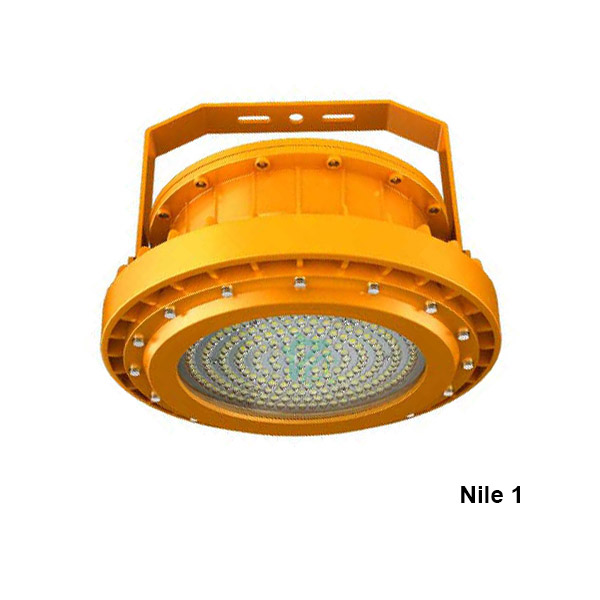

• Nile1:100W,150W

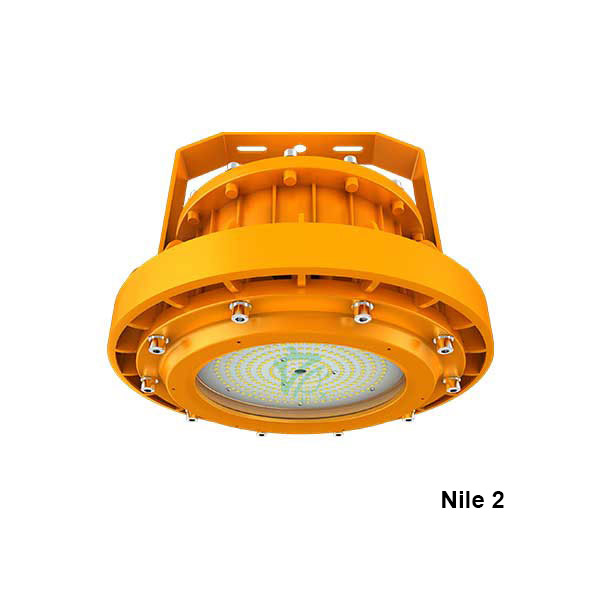

• Nile2:20W,60W,80W

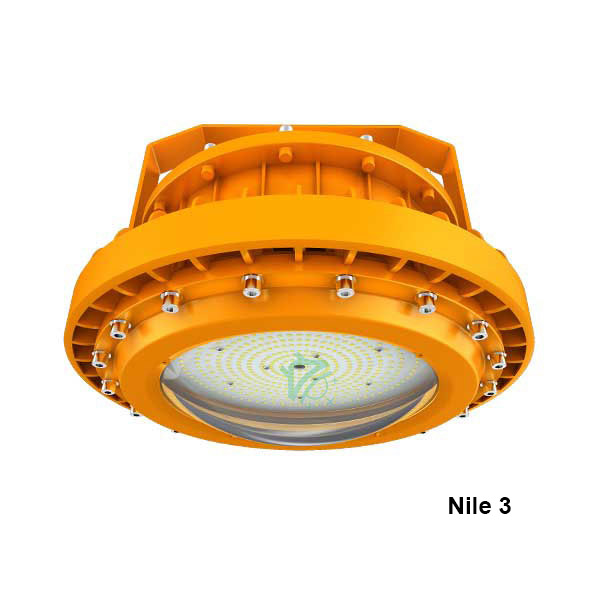

• Nile3:200W,250W,280W
EXPLOSION PROTECTION
Il2 G Ex db IIB T5/T6 Gb
Il2 D Ex tb IIIC T80/90C Db IP66
Marking IECEx
Ex db IIB T5/T6 Gb
Ex tb IIIC T80/90C Db IP66
Marking UL844 (North American)
Class I, Division 1, Groups C,D
Class I, Division 2, Groups A,B,C,D
Class II, Division 1, Groups E,F,G
Class II, Division 2, Groups F,G
Class III
Marine Marking
UL1598, UL1598A
ABS
Other Rating
IP 66
>APPLICATIONS
Oil and Gas industry
• All petroleum production and refining
• Petroleum loading and transportation
• Petroleum storage and retail
• LNG industry
• All mining operations and service
Ocean, marine and aerospace field
• Ocean platform operation facilities and structure
• Aerospace clean room and production
• Ocean vessel operations
Chemical industry
• All types of paint facilities
• Chemical production and storage
Metal treatment
• Steel and aluminum factories
• Pumping stations in any environment
• Metal smelting, foundry and fabrication
Food and alcohol industry
• Flour and fine particle production and storage
• Food and distilling production
• Alcohol industry
Other high humidity, high dust, high temperature, vapor locations
>MATERIALS
•Housing: Copper-free aluminum
•Lens: Tempered glass
•Hardware: Stainless steel
•Mounting Bracket: Stainless steel
