Best-in-class system efficacy - Up to 140 Lm / W,Voltage: AC100-277, AC200-488V, DC12-36V,Instant illumination and restrike - no warm-up time required,Safe and reliable heat transfer Die-casting aluminum body and frame -corrosion resistant,All exposed fasteners with quality stainless steel,Thermal shock and impact resistant.Harsh & hazardous duty.
•Working Temperature: -40°C ~ +60°C.
•High quality SMT LED and Meanwell Driver.
•Heavy-duty and high impact resistance.
•Replaceable LED board and drivers.
•Integrated junction box for driver .
•Dimmable and battery back up function available.
•Marine rating powder coated finish treatment.
•Up to 5 years warranty.
•Polycarbonate lens to make various beam angles.
This explosion-proof luminaire offers the widest range of ATEX and IECEx certified hazardous area lighting for safe use in potentially explosive atmospheres worldwide. A flameproof and impact-resistant high bay for lighting outdoor pathways, walkways and corridors in hazardous areas. It provides safe and reliable lighting in Zones 1, 2, 21 and 22 hazardous areas. Constructed of a durable, Die-casting aluminum housing. IP66 rating provide further protection from impact, vibration, and the elements. These light fixtures are designed for targeted indoor and outdoor lighting where corrosive, wet, dusty, hot and/or cold conditions exist. Common installations include oil and gas production facilities, chemical plants, and heavy industrial applications.

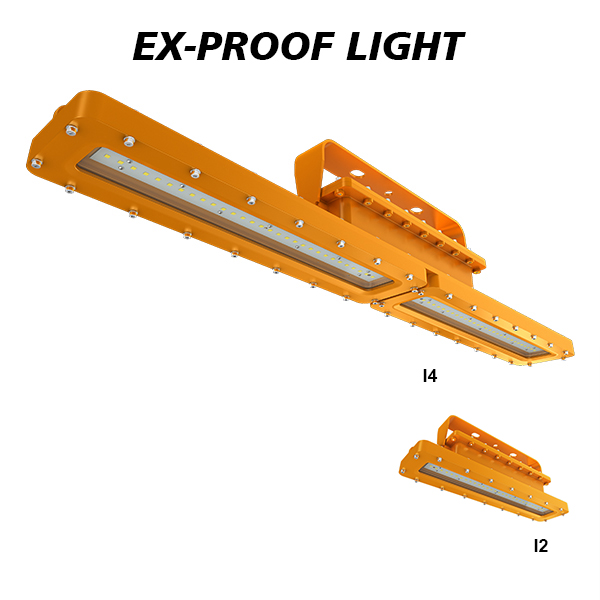

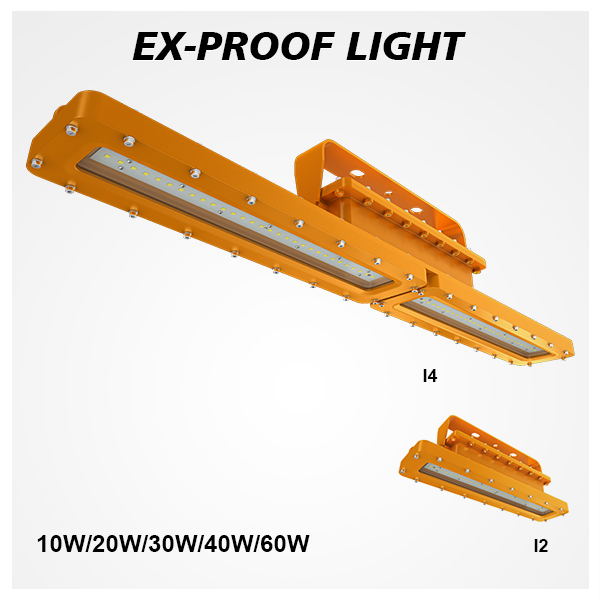

I Series-Ex-Proof Light
• I2:20W,40W,60W
• I4:10W,20W,30W,40W
Marking ATEX
Il2 G Ex db IIB T4 Gb
Il2 D Ex tb IIIC T63.5°C Db IP66
Marking IECEx
Ex db IIB T4 Gb
Ex tb IIIC T63.5°C Db IP66
Marking UL844 (North American)
Class I, Division 1, Groups C, D
Class I, Division 2, Groups A, B, C, D
Class II, Division 1, Groups E, F, G
Class II, Division 2, Groups F, G
Class III
Marking Marine
UL1598, UL1598A
ABS
Other Rating
IP66
Oil and Gas industry
•All petroleum production and refining
•Petroleum loading and transportation
•Petroleum storage and retail
•LNG industry
•All mining operations and service
Chemical industry
•All types of paint facilities
•Chemical production and storage
Ocean, marine and aerospace field
•Ocean platform operation facilities and structure
•Aerospace clean room and production
•Ocean vessel operations
Metal treatment
•Steel and aluminum factories
•Pumping stations in any environment
•Metal smelting, foundry and fabrication
Food and alcohol industry
•Flour and fine particle production and storage
•Food and distilling production
•Alcohol industry
Other high humidity, high dust, high temperature, vapor locations
MATERIALS
•Housing: Copper-free aluminum
•Lens: Glass
•Hardware: Stainless steel
•Mounting Bracket: Stainless steel
DIMENSION
I2
I4
