•Working Temperature:
IECEx/ATEX: -40⁰C≤Ta≤+40⁰C
•High quality SMT LED and Meanwell Driver.
UL:Model B and B2: -40⁰C to +50⁰C,Model B3: -40⁰C to +40⁰C
•Heavy-duty and high impact resistance.
•Replaceable LED board and drivers.
•Integrated junction box for driver .
•Dimmable and battery back up function available.
•Marine rating powder coated finish treatment.
•Up to 5 years warranty .
•Various installation ways for different applications.
•Glass lens or polycarbonate lens to make different beam angles.

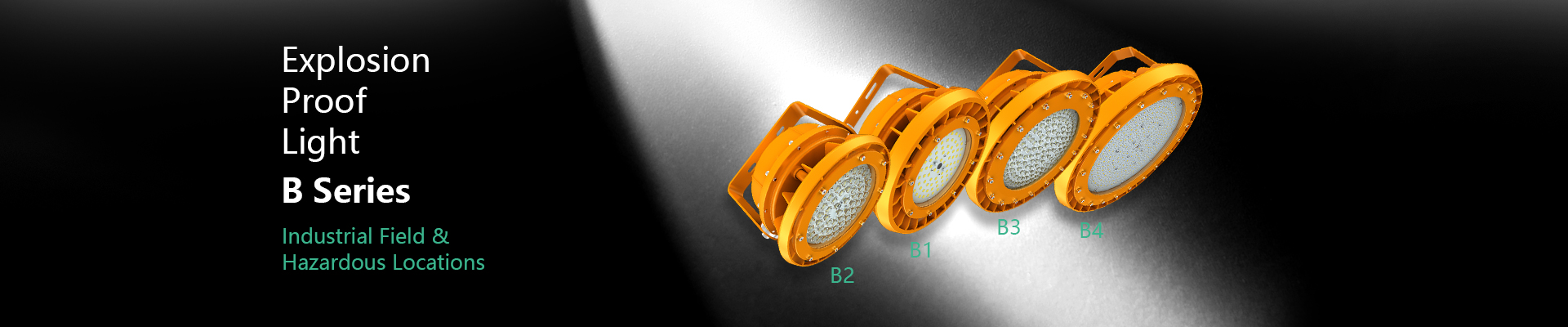

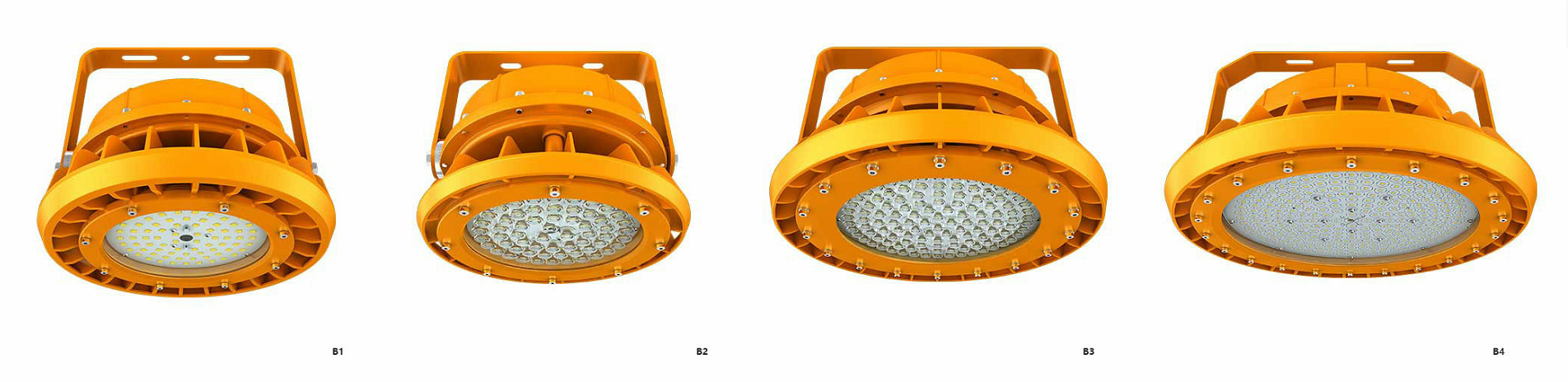

B Series

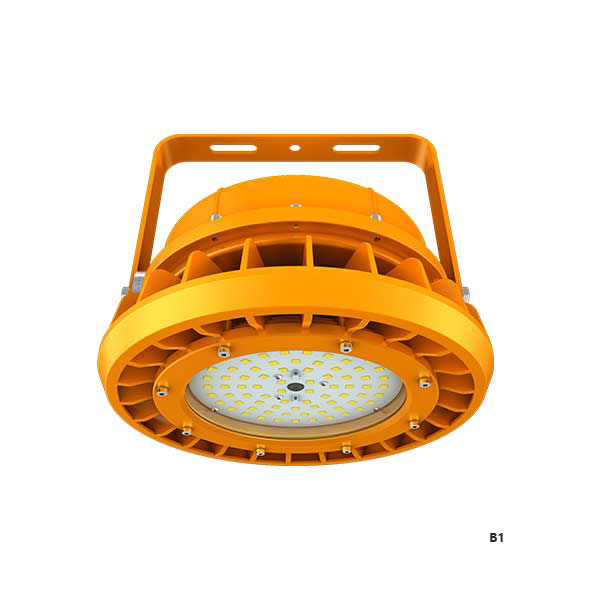

• B1:60W,80W

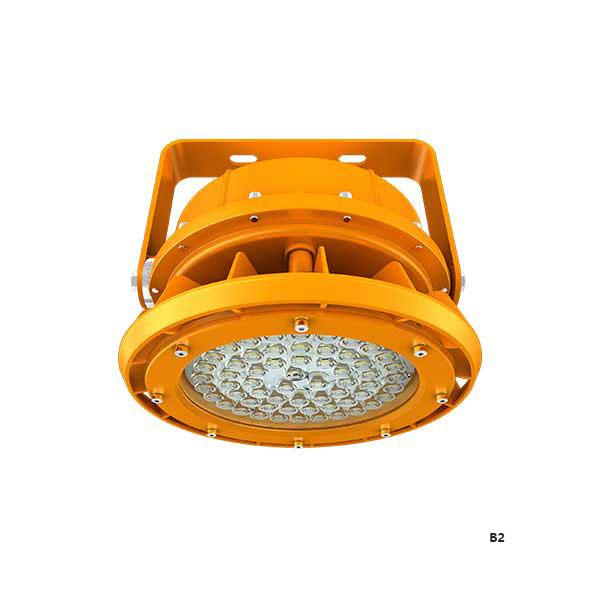

• B2:20W,40W

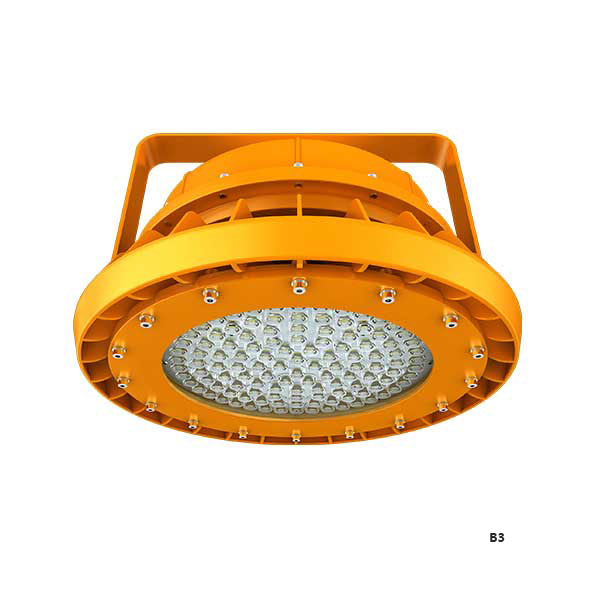

• B3:100W,120W,150W,200W

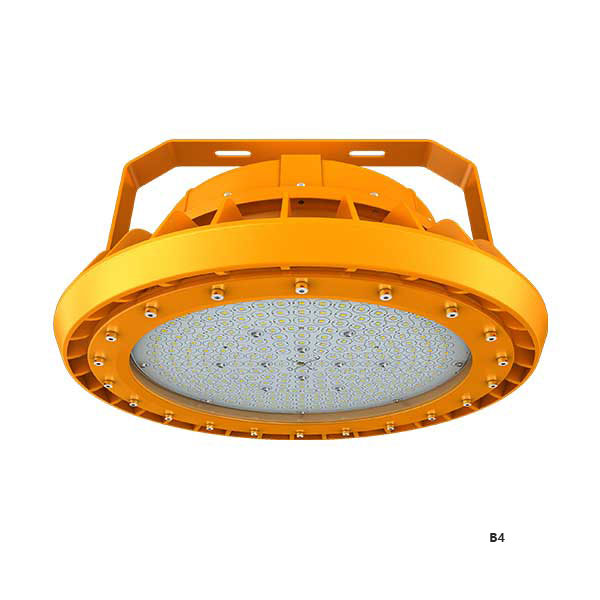

• B4:250,300W,350W,400W
>EXPLOSION PROTECTION >MATERIALS
Marking ATEX
II2 G Ex mb eb IIC T4 Gb II2 D Ex tb IIIC T135C Db IP66 II3 G Ex ec IIC T3 Gc
Marking IECEx
Ex mb eb IIC T4 Gb Ex tb IIIC T135°C Db IP66 Ex ec IIC T3 Gc Ex tb IIIC T85°C Db IP66
Marking UL844(North American)
Class I, Division 2, Groups A, B, C, D Class II, Division 1, Groups E, F, G Class II, Division 2, Groups F, G Class III
Marine Marking
UL1598, UL1598A
ABS
Other Rating
IP 66
>APPLICATIONS
Oil and Gas industry
• All petroleum production and refining
• Petroleum loading and transportation
• Petroleum storage and retail
• LNG industry
• All mining operations and service
Chemical industry
• All types of paint facilities
• Chemical production and storage
Ocean, marine and aerospace field
• Ocean platform operation facilities and structure
• Aerospace clean room and production
• Ocean vessel operations
Metal treatment
• Steel and aluminum factories
• Pumping stations in any environment
• Metal smelting, foundry and fabrication
Food and alcohol industry
• Flour and fine particle production and storage
• Food and distilling production
• Alcohol industry
Other high humidity, high dust, high temperature, vapor locations
>DIMENSION
